130mm(0.6KW-3KW)
Author: admin Viewed: 7623【Close】
2017-04-25 15:16:39

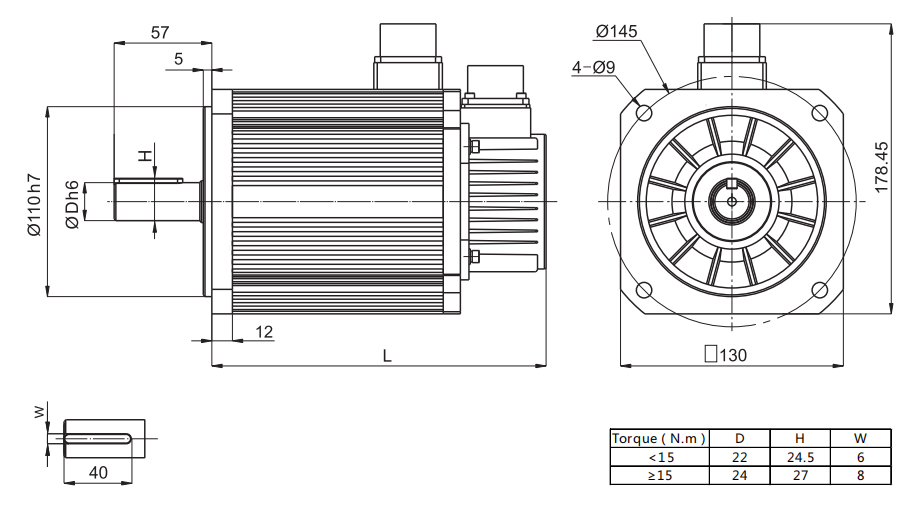

UNITE:MM
Flame size 130mmV2.3 Model Rated
TorqueRated
VoltageRated
SpeedRated
PowerRated
CurrentKt Ke Max.
SpeedMax.
TorqueRotor
InertiaPoles Weight Length Length
(with braker)N.m Vac rpm kW A N.m/A V/krpm rpm N.m Kg.cm² poles Kg mm mm 130A75B15C 4.8 220 1500 0.75 3.2 1.7 101 2000 14.3 11 8 7 160 205 130A10C20C 4.8 220 2000 1.0 4.0 1.4 83 2500 14.3 12 8 8 160 205 130A13C25C 5.0 220 2500 1.3 5.2 1.1 65 3000 14.9 12 8 8 160 205 130A15C30C 4.8 220 3000 1.5 5.7 0.9 57 3600 14.3 12 8 8 160 205 130A75B10C 7.2 220 1000 0.75 2.9 2.8 167 1350 21.6 12 8 9 205 255 130A11C15C 7.2 220 1500 1.1 4.5 1.8 107 2000 21.6 12 8 9 205 255 130A15C20C 7.2 220 2000 1.5 6.1 1.3 80 2500 21.5 22 8 9 205 255 130A20C30C 6.4 220 3000 2.0 7.6 1.0 59 3600 19.1 23 8 9 205 255 130A10C10C 9.6 220 1000 1.0 4.2 2.5 151 1350 28.7 23 8 9 205 255 130A15C15C 9.6 220 1500 1.5 6.2 1.7 104 2000 28.7 23 8 10 205 255 130A20C20C 9.6 220 2000 2.0 8.1 1.3 80 2500 28.7 23 8 10 205 255 130A25C25C 9.6 220 2500 2.5 9.9 1.1 66 3000 28.7 23 8 10 205 255 130A30C30C 9.6 220 3000 3.0 11.7 0.9 57 3600 28.7 30 8 12 255 295 130A15C10C 14.3 220 1000 1.5 6.2 2.6 158 1350 43.0 30 8 12 255 295 130A23C15C 14.7 220 1500 2.3 9.8 1.7 104 2000 44.0 34 8 13 255 295 130A30C20C 14.3 220 2000 3.0 11.0 1.5 88 2500 43.0 34 8 13 255 295 130A20C10C 19.1 220 1000 2.0 7.6 2.8 171 1350 57.3 45 8 15 295 355 130A30C15C 19.1 220 1500 3.0 10.9 2.0 119 2000 57.3 45 8 15 295 355 电机绝缘等级：H 热保护：PT100，KTY可选 防护等级：IP65 接线方式：航空插头 冷却方式：自然冷却 抱闸:可选 工作制：S1
- 110,130mm(natural cooling)
