Products listDirect-driven servo motors

350mm (35KW-59KW)

Author: admin Viewed: 3668Close

2017-08-22 11:06:59

  •

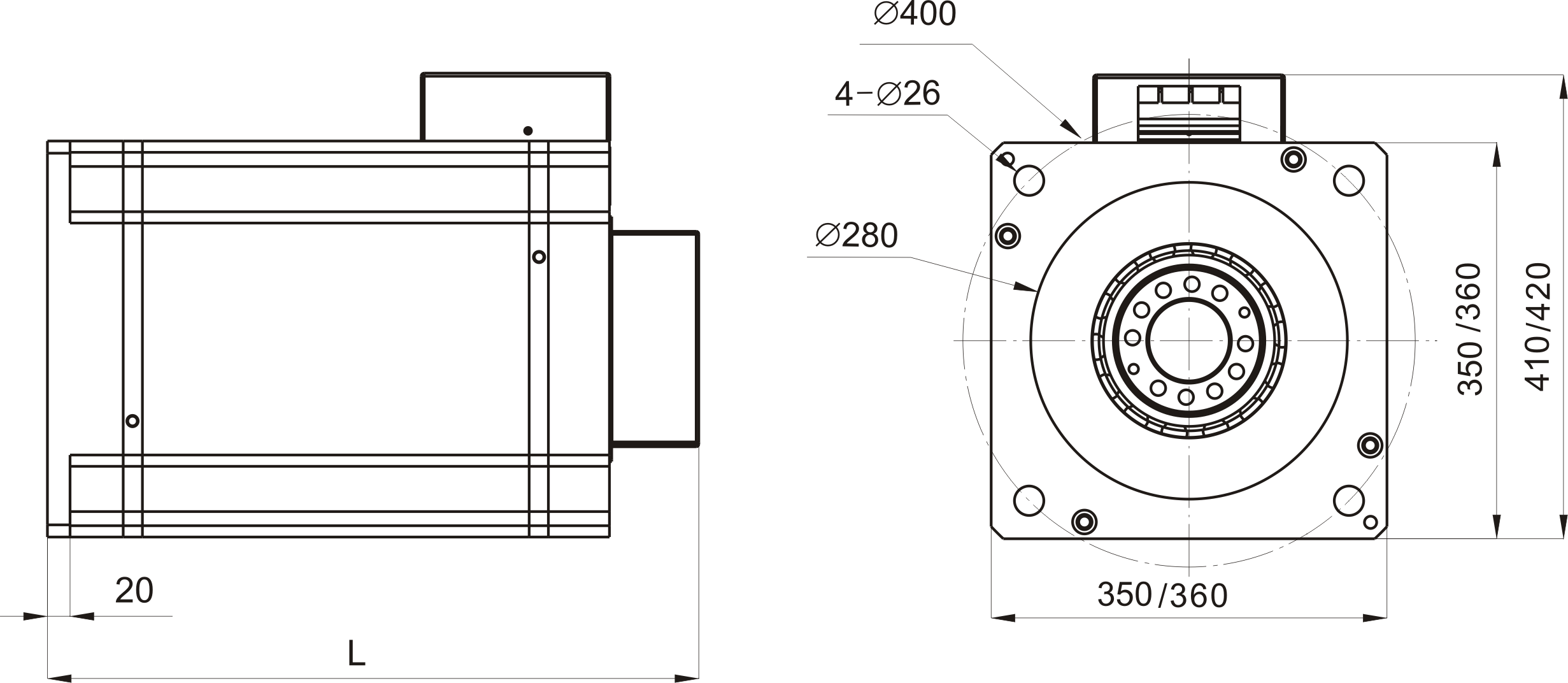

    UNITE:MM


  • Flame size 350mm (Direct driven low speed fan cooling)

    Model

    Rated
     torque

    Rated
     voltage

    Rated
     speed

    Rated
     power

    Rated
     current

    Kt

    Ke

    Max.
    speed

    Max.
    torque

    Roter
    inertia

    Poles

    Weight

    L
    Length

    N.m

    Vac

    rpm

    kW

    A

    N.m/A

    V/krpm

    rpm

    N.m

    Kg.cm²

    Poles

    Kg

    mm

    SM350H35D35B

    960

    380

    350

    35

    88

    11.7

    710

    400

    2880

    2860

    20

    148

    380

    SM350H55D35B

    1500

    380

    350

    55

    138

    11.7

    710

    400

    4500

    3940

    20

    225

    485

    SM350H59D35B

    1600

    380

    350

    59

    147

    11.7

    710

    400

    4800

    5560

    20

    235

    530

    SM360H59D35B

    1600

    380

    350

    59

    147

    11.7

    710

    400

    4800

    5570

    20

    245

    538

    Motor insulation: class-H; Thermal protection: PTC100 with KTY optional; protection grade: IP65 except terminal box;

    Wiring method:terminal box; Cooling method: liquid cooling; Working standard: long-term, S1; SM360 are new version motor      【V2.0】



  • 300,350mm servo motor (dirct driven))
