Products listHigh speed servo motors

170mm(8KW-22KW)

Author: admin Viewed: 5325【Close】

2017-08-22 11:22:17

  •

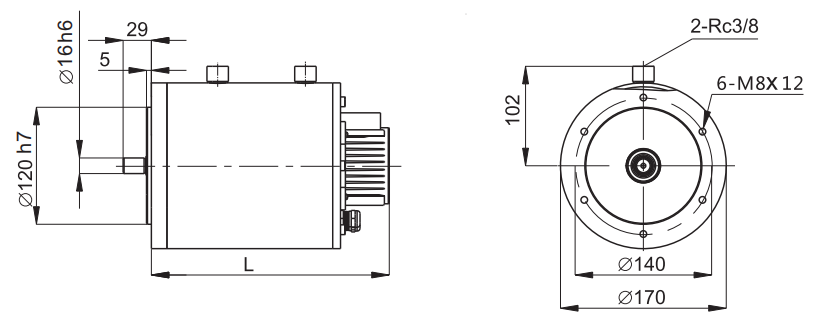

    UNITE:MM



  • Flame size 170mm (High speed)

    Model

    Rated
      torque

    Rated
      voltage

    Rated
      speed

    Rated
      power

    Rated
      current

    Kt

    Ke

    Max.
     speed

    Max.
     torque

    Roter
      inertia

    Poles

    Weight

    L
      Length

    N.m

    Vac

    rpm

    kW

    A

    N.m/A

    V/krpm

    rpm

    N.m

    Kg.cm²

    Poles

    Kg

    mm

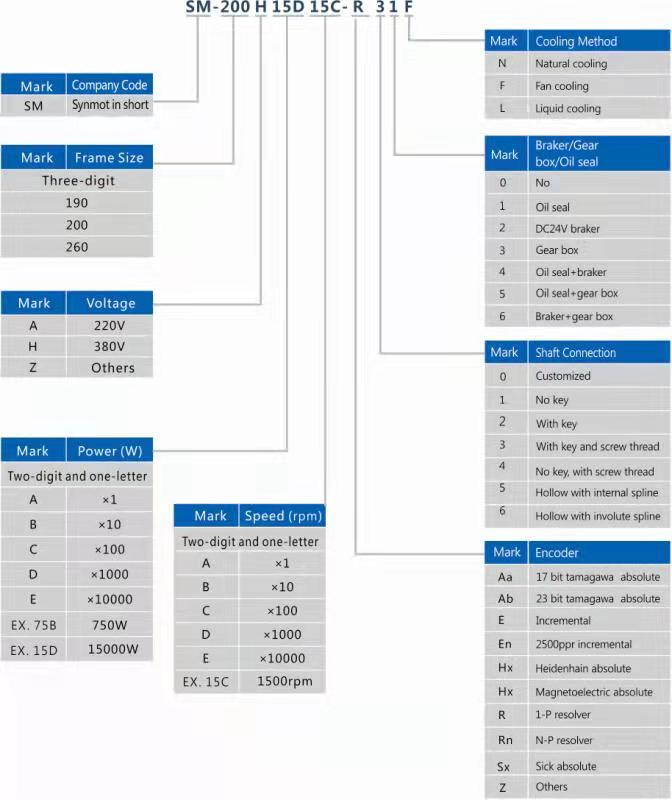

    170H80C80C

    9.5

    380

    8000

    8

    17

    0.63

    38.3

    10000

    19.0

    3.5

    4

    26

    244

    170H11D12D

    8.8

    380

    12000

    11

    24

    0.41

    25.0

    14000

    17.6

    3.5

    4

    26

    244

    170H15D20D

    7.2

    380

    20000

    15

    31

    0.27

    16.2

    22000

    14.4

    3.5

    4

    26

    244

    170H22D20D

    10.5

    380

    20000

    22

    46

    0.26

    15.7

    22000

    21.0

    4.5

    4

    28

    265

    Motor insulation: class-H; Thermal protection: PTC100 with KTY optional; Protection grade: IP65;

    Wiring method: Plug; Cooling method: liquid cooling; Working standard: long-term, S1     【V2.0】
